Power PCB KegMaster Series 4 - XL - Premium

SKU: SXLPCB

Power PCB KegMaster Series 4 - XL - Premium

SKU: SXLPCB
$49.95
Total: $49.95

Get Sharable Link

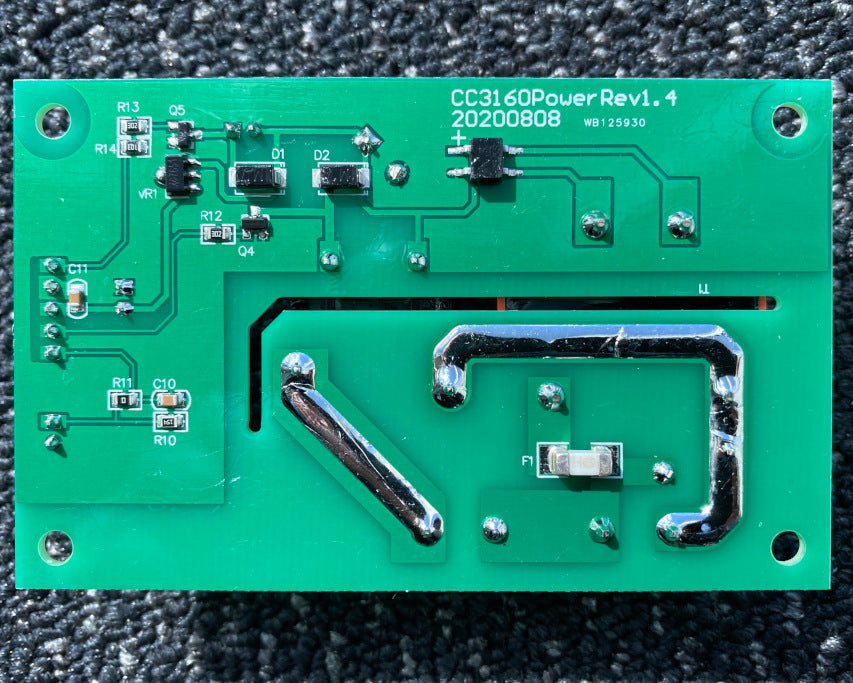

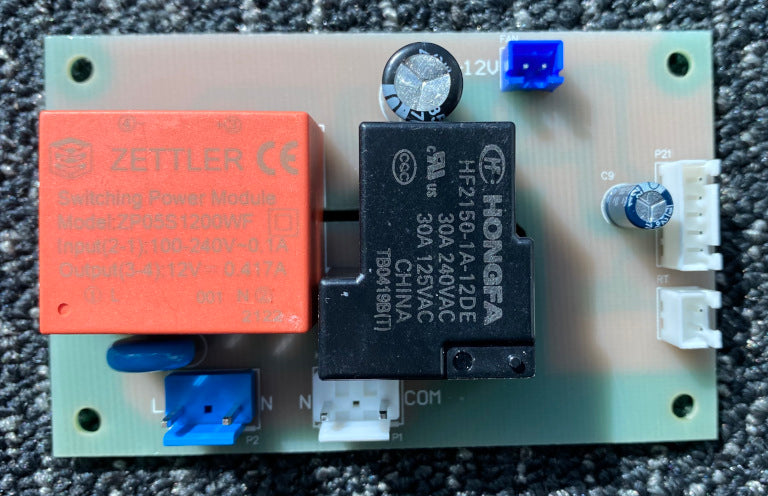

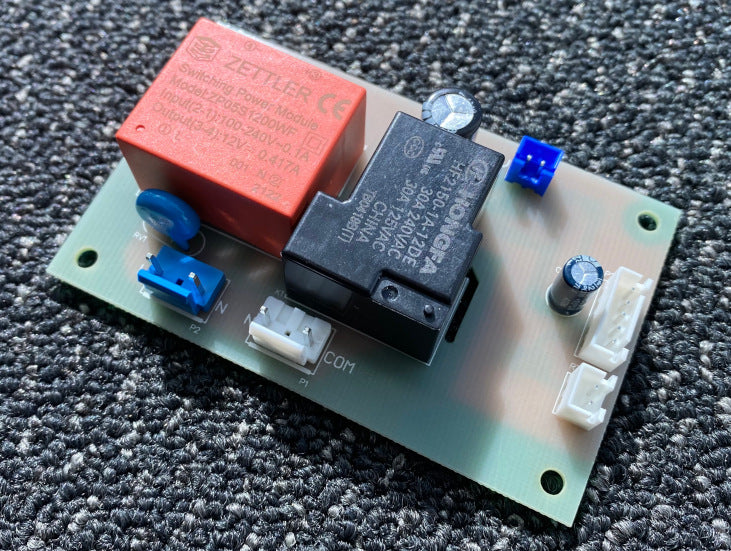

S4 SXL Premium - Main Circuit Board (PCB)

This is a replacement power control board for the Series 4, Series XL and Premium Keg Master fridges.
Located at the rear of the unit near the compressor.

Replacing this part involves working with mains power voltages and should only be preformed by competent/qualified persons.

Note: May differ from photos but is compatible with Series 4 Kegmaster.

Keg Master Series 4 Kegerator Specs:

  • Temperature range -5C to 28C
  • The fridge is approximately 160L
  • Dimensions:
    • 60cm Wide
    • 61cm Deep
    • 89cm Height of the fridge part (including castor wheels but excluding the height of guard rail, drip tray or font)
    • 84cm Height of the fridge part (excluding castor wheels and the height of guard rail, drip tray or font)
  • Refrigerant: R600a
  • Packaged dimensions: H 88cm W 66cm D 69cm

Please note: You will require a C02 cylinder to serve berverages from your kegerator. We stock 2.6Kg cylinders that fit conveniently into the C02 Cylinder Bracket Holder that attaches to the back of the kegerator. We also stock a 6kg cylinder.



Recommended Setback:

Our KegMaster Series 4 needs good airflow to help it achieve optimum cooling power. The ideal setback, or spacing, is as per below (when facing the fridge):

  • 10cm on each side
  • 5-10cm at the back
  • no setback required on the top, can be installed flush to a counter top
  • no setback required underneath*
  • no setback at the front
  • can not be enclosed into a cabinet, it must have vents

*It is recommended to have your Series 4 KegMaster elevated from the floor, in case any moisture settles under it, the spacing will help dissipate it.



Setting the Calibration Factor on the Keg Master Series 4 Kegerator:

If your kegerator is freezing the chill plate on the inside with a thick layer or ice, it is recommended to set the calibration at -3 and see if the situation improves.

If the KegMaster™ is not cold enough, it is recommended to set it to +2 and see it the situation improves.



  1. Press and hold both the “Cooler” and “Warmer” buttons for 5 seconds until the temperature display flashes SC.
  2. Release those buttons and press the “°F/°C” button.
  3. The display now shows the calibration factor, and you can change it with the “Cooler” and “Warmer” buttons.
  4. Once it is at the desired value press the “°F/°C” button again to save it.

Must read

  • Ventilation: the fridge MUST have proper ventilation around itself in order to cool properly and to maximise its lifespan
  • Out of direct sunlight: the fridge MUST NOT be in direct sunlight
  • Indoors fridge: this fridge is designed to be installed inside, in a nicely ventilated area
  • Class T: this fridge has been tested under the tropical climate conditions



These fridges are designed for indoor, domestic use. For outdoors usage, we recommend our Kegmaster Solstice range.

Keg King Kegerator Frequently Asked Questions

Below you will find the questions we get asked the most regarding our Keg King Kegerators.
Please click on one of the questions below to see the answer.

S4 SXL Premium - Main Circuit Board (PCB)

This is a replacement power control board for the Series 4, Series XL and Premium Keg Master fridges.
Located at the rear of the unit near the compressor.

Replacing this part involves working with mains power voltages and should only be preformed by competent/qualified persons.

Note: May differ from photos but is compatible with Series 4 Kegmaster.

Keg Master Series 4 Kegerator Specs:

  • Temperature range -5C to 28C
  • The fridge is approximately 160L
  • Dimensions:
    • 60cm Wide
    • 61cm Deep
    • 89cm Height of the fridge part (including castor wheels but excluding the height of guard rail, drip tray or font)
    • 84cm Height of the fridge part (excluding castor wheels and the height of guard rail, drip tray or font)
  • Refrigerant: R600a
  • Packaged dimensions: H 88cm W 66cm D 69cm

Please note: You will require a C02 cylinder to serve berverages from your kegerator. We stock 2.6Kg cylinders that fit conveniently into the C02 Cylinder Bracket Holder that attaches to the back of the kegerator. We also stock a 6kg cylinder.



Recommended Setback:

Our KegMaster Series 4 needs good airflow to help it achieve optimum cooling power. The ideal setback, or spacing, is as per below (when facing the fridge):

  • 10cm on each side
  • 5-10cm at the back
  • no setback required on the top, can be installed flush to a counter top
  • no setback required underneath*
  • no setback at the front
  • can not be enclosed into a cabinet, it must have vents

*It is recommended to have your Series 4 KegMaster elevated from the floor, in case any moisture settles under it, the spacing will help dissipate it.



Setting the Calibration Factor on the Keg Master Series 4 Kegerator:

If your kegerator is freezing the chill plate on the inside with a thick layer or ice, it is recommended to set the calibration at -3 and see if the situation improves.

If the KegMaster™ is not cold enough, it is recommended to set it to +2 and see it the situation improves.



  1. Press and hold both the “Cooler” and “Warmer” buttons for 5 seconds until the temperature display flashes SC.
  2. Release those buttons and press the “°F/°C” button.
  3. The display now shows the calibration factor, and you can change it with the “Cooler” and “Warmer” buttons.
  4. Once it is at the desired value press the “°F/°C” button again to save it.

Must read

  • Ventilation: the fridge MUST have proper ventilation around itself in order to cool properly and to maximise its lifespan
  • Out of direct sunlight: the fridge MUST NOT be in direct sunlight
  • Indoors fridge: this fridge is designed to be installed inside, in a nicely ventilated area
  • Class T: this fridge has been tested under the tropical climate conditions



These fridges are designed for indoor, domestic use. For outdoors usage, we recommend our Kegmaster Solstice range.

Keg King Kegerator Frequently Asked Questions

Below you will find the questions we get asked the most regarding our Keg King Kegerators.
Please click on one of the questions below to see the answer.
